The PsapSimulator Application

The PsapSimulator application is a test program. The intended uses of this application are:

  1. Assist in interoperability testing of Next Generation 9-1-1 (NG9-1-1) Emergency Services IP Network (ESInet) functional elements that deliver NG9-1-1 calls to NG9-1-1 capable Public Safety Answering Points (PSAPs).
  2. Provide a way to perform integration testing of the various NG9-1-1 interfaces that have been implemented in the SipLib, Ng911Lib, EidoLib and Ng911CadIfLib open source class libraries.
  3. Provide a proof of concept implementation of the less commonly implemented interfaces specified in the most recent version of the NENA i3 Standard for Next Generation 9-1-1 Standard (NENA-STA-010.3f).

This application is a simplified PSAP call handling functional element. It is a single call taker position application that can handle multiple calls simultaneously, but the call taker can only communicate with a single caller at a time. There is no centralized PSAP call controller so functions such as automatic call distribution, call queue pickup, call takeover, barge-in, local transfers (within the same PSAP), local conferences, administrative (non-emergency, i.e. an interface to an agency�s PBX) call handling and other functions that are normally expected in a PSAP application will not be available.

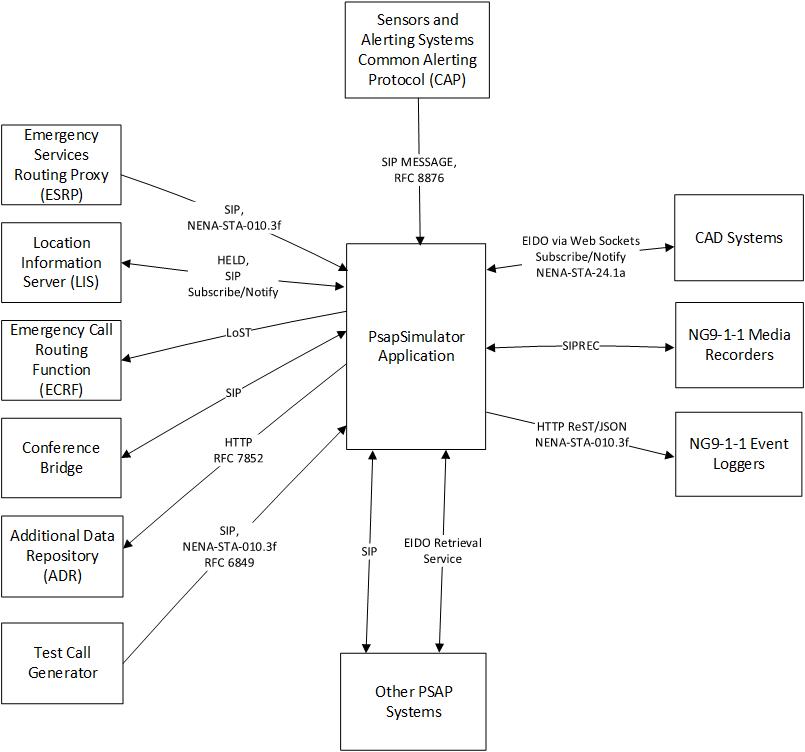

The following block diagram shows the NG9-1-1 functional elements that the PsapSimulator application can interface to.

PsapSimulatorBlockDiagram

Please refer to the Operators Manual for instructions on how to install and use this application.

This is an open source project. The GitHub repository is called PsapSimulator.
